PRO LOGIC® AND AQUA PLUS™ VALVE ACTUATOR (Hayward Pool Products)

Audio Accounts Products Images

PRO LOGIC® AND AQUA PLUS™ VALVE ACTUATOR

This product is part of
Hayward Product Catalog 2010
  • Description
  • Features
  • Notes
  • Request a Quote
  • Send to a Friend

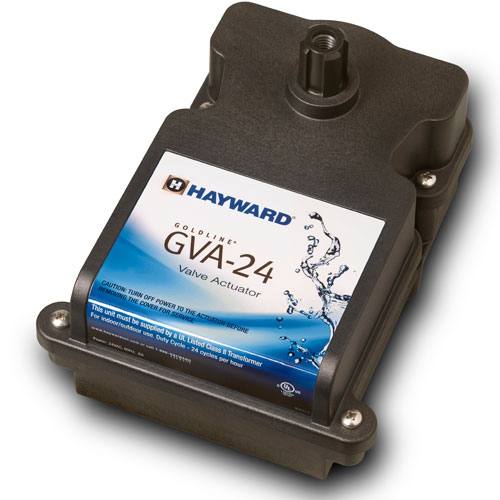

The Goldline Valve Actuator rotates 2-port and 3-port valves automatically. Use it with the Aqua Logic system to automate pool/spa operation, cleaner operation, water features, or a variety of other uses. The industry standard configuration of the GVA-24 means that it is compatible with all major manufacturer's valves and pool automation systems. The unique cam setting feature ensures a quick and easy installation with the precise control of water flow.


For the installers convenience, Goldline also offers kits that combine the GVA-24 valve actuator with 3-port valves (see V&A in Buying Guide). For solar heating installations, Goldline offers the solar kits (see AQL-SOL-KIT in Buying Guide) that combine a valve actuator, 3-port valve and temperature sensor ("solar" sensor).


Ctn. Qty.: 1
  • Allows manual rotation in the event of a power outage
  • ON1-OFF-ON2
  • Highest torque rating available
  • UL and CUL Listed
  • 20 ft. cable with industry standard plug
  • Operates 2-port or 3-port valves
  • Industry standard configuration: use with Hayward, Jandy, or Compool valves
  • Easy to adjust cams allow actuator to be mounted in any position
  • Manual switch is mounted underneath actuator to minimize tampering
  • Up to 180 degree rotation with 12.8 degree increments
Applications
  • Water feature valves
  • Pool/spa suction and return valves
  • Cleaner valves
  • Any 2-port or 3-port valve
  • Solar valves
1 year limited warranty.
Product Information
Name:PRO LOGIC® AND AQUA PLUS™ VALVE ACTUATOR
Manufacturer:Hayward Pool Products
Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Phone:(615) 356-7086
Fax:(615) 356-7089
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:PRO LOGIC® AND AQUA PLUS™ VALVE ACTUATOR
Manufacturer:Hayward Pool Products
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

Product Options

Qty Description   Our Price (USD)
Part#: GVA-24
SHIPPING WEIGHT: 3.2 lbs. - Actuator (Valve actuator, 24V, .75A, 15 ft. cable)
Request a Quote

Part#: V&A-1P
SHIPPING WEIGHT: 5.0 lbs. - Valve & Actuator kit (Valve actuator + 3-port/1 1/2" valve)
Request a Quote

Part#: V&A-2P
SHIPPING WEIGHT: 5.0 lbs. - Valve & Actuator kit (Valve actuator + 3-port/2" valve)
Request a Quote

Part#: AQL-SOL-KIT-1P
SHIPPING WEIGHT: 5.0 lbs. - Solar kit (Valve actuator + 3-port/1 1/2" valve + temp sensor)
Request a Quote

Part#: AQL-SOL-KIT-2P
SHIPPING WEIGHT: 5.0 lbs. - Solar kit (Valve actuator + 3-port/2" valve + temp sensor)
Request a Quote
